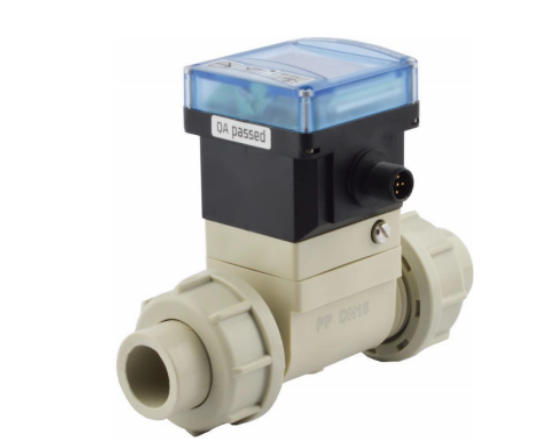

In the wave of industrial intelligence, fluid measurement is a critical link throughout the entire production chain. It acts as the "smart nervous system" of industrial processes, precisely sensing the pulse of fluid flow and providing the core basis for production decisions. With deep expertise in fluid control, Mid-crown has meticulously engineered the Kingspray NF3032 flow meter. Taking technology as its wings and quality as its foundation, it breaks the limitations of traditional measurement, reshaping the paradigm of fluid control with precision and convenience, and injecting a continuous stream of momentum into the high-quality development of various industries.

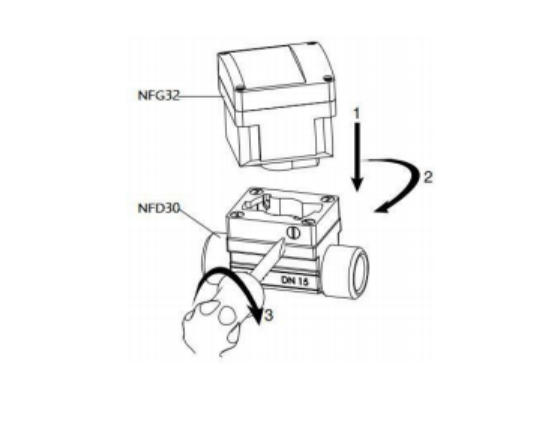

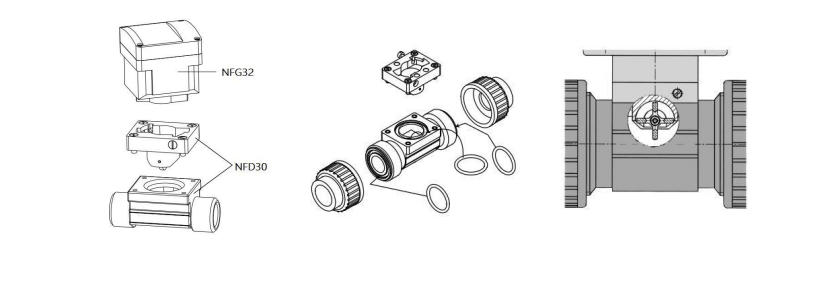

The efficient operation of industrial production relies on flexible device adaptation and convenient management.The NF3032 flow meter adheres to a modular design philosophy, seamlessly connecting the NFD30 turbine base and the NFG32 electronic module via a bayonet fitting. This ingenious concept not only makes installation and disassembly smooth and efficient, significantly shortening project timelines, but also streamlines later maintenance and troubleshooting.
Simple operations are all that's needed for component replacement and calibration. Switchpoint adjustment is equally flexible and versatile, allowing effortless switching between local button operation and remote setting via an external 4-20mA signal. Electrical connections follow universal standards, enabling integration into various industrial control systems without complex adaptation, showcasing the efficiency of device management.
Precision is the soul of measurement equipment,and the core technology of the Kingspray NF3032 flow meter exemplifies this pursuit of excellence. Operating on the principle of turbine rotation detection, it skillfully converts fluid kinetic energy into precise electrical signals – the pulse signal generated by the turbine rotating under fluid force has a frequency strictly proportional to the flow rate.
Through the accurate calculation of the formula f=K·Q, real-time capture of flow data is achieved. Across a broad measurement range of 0.3 m/s to 10 m/s, it consistently maintains exceptional performance: full-scale accuracy reaches ±3%, linearity is controlled within ±0.5%, and repeatability is merely ±0.4% of the reading. Whether handling high-speed industrial flows or low-speed transmission of delicate media, it can sensitively capture every nuance, providing reliable data support for production regulation and control, and assisting enterprises in reaching new heights of refined management.
A user-centric design philosophy runs through the product,endowing the NF3032 flow meter with strong scenario adaptation capabilities. It offers three high-quality material options for connection pipes: PP, UPVC, and PVDF, respectively suitable for temperature ranges of 0-80°C, 0-60°C, and -15-100°C. It can handle both standard and corrosive fluids with ease.
Pipe diameter specifications cover DN08 to DN50, coupled with a standard union-type installation method, flexibly adapting to various requirements from small equipment piping to main pipeline systems of large production lines. This high degree of adaptability allows it to successfully cross into multiple industries such as chemicals, water treatment, food & beverage, and pharmaceuticals, becoming a common choice for enterprises in different fields and demonstrating stable performance across diverse working conditions.
The commitment to quality begins with the careful selection of every material.The NF3032 flow meter housing is made of polycarbonate with 20% glass fiber, combining high strength, anti-aging, and impact resistance to withstand wear and erosion in industrial environments. The front panel uses polyester material, which is wear-resistant and easy to clean, maintaining clear display even after long-term use.
The base and turbine employ corrosion-resistant materials, while the shaft and bearings are made of high-strength ceramic, effectively extending service life and stability. The O-ring seal comes standard with FPM material and can be replaced with EPDM material as needed, further broadening media compatibility. The refinement of every detail demonstrates an extreme pursuit of durability, allowing the product to operate stably even under harsh conditions, saving enterprises the hassle of frequent device replacement.
Excellent electrical performance provides strong support for the product's stable operation and intelligent connectivity.It accommodates a wide voltage input of 24VDC ±10%, features polarity reverse protection and short-circuit protection functions, effectively mitigating damage from voltage fluctuations or operational errors. It supports both NPN and PNP transistor outputs for direct connection to PLC systems.
Optionally, it can be equipped with a 4-20mA external setpoint input and an ASi fieldbus interface, enabling remote control and data transmission, and assisting in building intelligent production management systems. The low-energy-consumption design keeps the maximum current draw to just 50mA (with PNP output under load), making long-term operation more economical and eco-friendly. When paired with the recommended shielded cable, it effectively resists electromagnetic interference, ensuring stable and smooth signal transmission and keeping data acquisition free from external influence.
Installation convenience and environmental adaptability give the NF3032 flow meter a distinct advantage in practical applications.For different pipeline designs such as those with control valves, 90° bends, or pipe expansion sections, it provides clear upstream and downstream straight-pipe distance requirements, complemented by intuitive installation diagrams, allowing even non-professionals to get started quickly.
An IP65 protection rating (when connectors are tightened) effectively guards against dust and water spray, enabling it to handle humid and dusty industrial environments with ease. An operating temperature range of 0-60°C and suitability for relative humidity below 80% allow it to operate stably in different regions and climates, requiring no additional protective measures and reducing usage costs.
Simple and user-friendly operation makes complex intelligent measurement easy and straightforward.The button configuration of the NF3032 flow meter is intuitive; pressing and holding for more than 2 seconds enters the menu setup interface. Parameters such as units, output status, and screen brightness can be flexibly configured to meet personalized needs.
The accompanying flow-rate-velocity-diameter chart and k-factor reference table provide clear guidance for selection and commissioning, significantly lowering the barrier to use. Whether for initial setup or later parameter adjustments, tasks can be completed efficiently, allowing users to quickly master the device's capabilities and fully leverage its core strengths.
Mid-crown always adheres to the philosophy of "user demand-oriented, technology innovation-driven," providing comprehensive support and service for the NF3032 flow meter, from selection assistance and technical guidance to after-sales service. Every step embodies a sense of responsibility and care for users.
In the era of Industry 4.0, the NF3032 flow meter will continue to leverage its core values of precision, stability, ease of use, and intelligence to help enterprises achieve more efficient, economical, and reliable operations in the field of fluid control. We look forward to partnering with industry peers to jointly advance towards a smarter industrial future.
