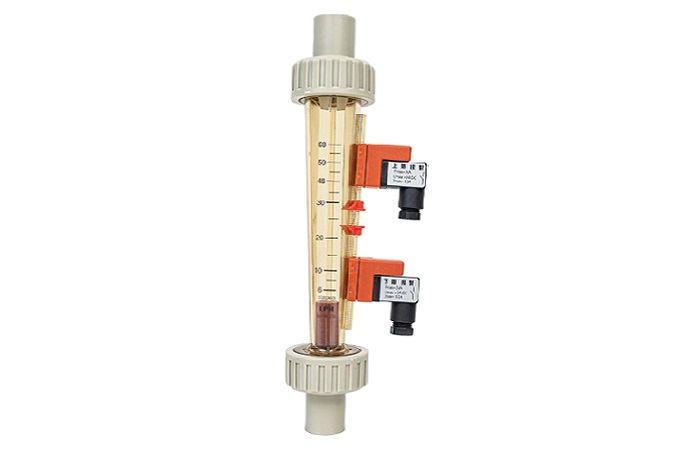

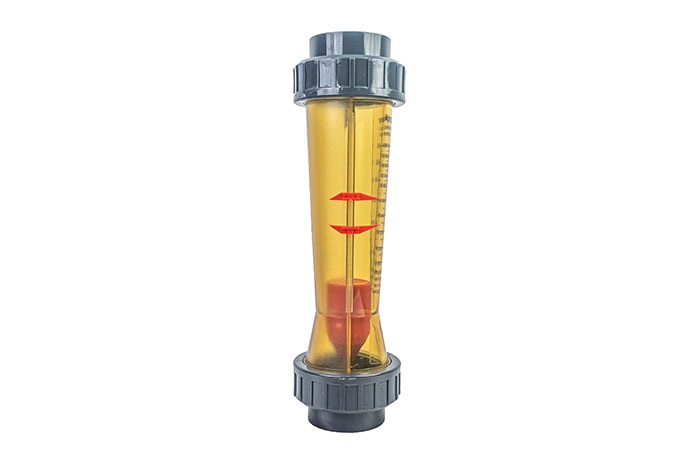

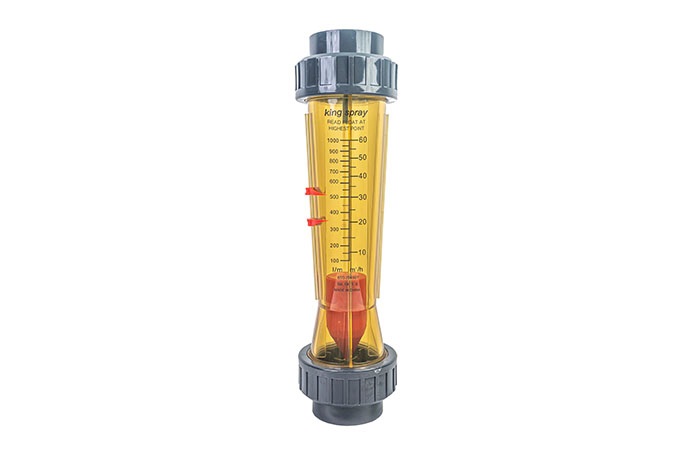

A plastic rotameter is a type of variable area flow meter in which a float moves up and down inside a tapered transparent plastic tube, indicating flow rate based on float position. The upward force of the fluid and buoyancy push the float upward, while gravity pushes it downward; at equilibrium, the float height corresponds to a specific flow rate. Because plastic rotameters typically use corrosion-resistant plastic materials, they are well suited to chemical, water treatment, and corrosive liquid environments, offering excellent chemical compatibility and transparency for visual reading. Kingspray (Mid-Crown) offers specially engineered rotameter models using high quality plastics and refined float designs to ensure stability, accurate response, and resistance to chemical damage. Their F10 rotameter, for example, features laser-engraved scale markings, dual pointers, fine CNC machined floats, and smooth insertion joints, all of which reflect the attention to detail in the plastic flow meter line.
When installing a plastic rotameter, it must be oriented vertically so that the flow passes from bottom to top through the plastic tube. Any deviation from vertical causes float misalignment and inaccurate readings, because the float relies on vertical gravity balance. The tube must not tilt or lean, and the flow must enter cleanly without swirl or turbulence. In addition, the inlet and outlet connections to the plastic flow meter must be smooth and aligned to avoid introducing turbulence or pressure drop, which could disturb float behavior and reading stability. The mounting should avoid excessive mechanical stress or vibration; support the plastic rotameter properly to prevent bending or torque on the housing. Also, the transparent plastic tube must be kept clean so that the float scale remains visible; deposits or fouling inside the tube can impair float movement or obscure the reading.
Choosing the correct plastic rotameter version for your application is crucial to maintain measurement accuracy under changing conditions. Because the fluid density, temperature, and viscosity influence float buoyancy and drag, Kingspray offers customized scale calibration based on the specific chemical medium so that the plastic rotameter reads directly without requiring manual conversion. The float design must match the fluid's density range to ensure the float neither sticks at low flow nor bottoms out at high flow. The rotameter tube material (e.g. PVDF, acrylic, ABS) must be compatible with the chemical medium to avoid swelling, cracking, or degradation. In environments with possible particulate contamination, a filter or strainer upstream is advised to prevent float jamming or damage to the internal surfaces. If the process temperature or pressure can change significantly, one must confirm that the plastic tube can withstand these changes without deformation or creep, and that the float response remains consistent. When reading the flow, the user should view at eye level and read the float's widest point on the scale mark; avoid parallax error. In the Kingspray F10 model, a dual pointer system helps define upper and lower acceptable flow limits, aiding monitoring.
To keep a plastic rotameter operating reliably, regular maintenance and periodic calibration are essential. Visual inspection should check for scratches, cracks, or clouding of the plastic tube, which degrade transparency and may distort float behavior. The float should move freely; any sign of sticking, vibration, or offset resting indicates internal wear or contamination. Periodic cleaning may be required, using compatible chemicals that do not attack the plastic. Calibration checks should compare the indicated flow against a known reference standard, especially after extreme process changes or after long service. For safety reasons, ensure that the plastic rotameter is compatible with the process pressure and fluid; overpressure may cause rupture, and unsuitable fluid may degrade plastic or sealing materials. If the plastic flow meter is used with hazardous chemicals, proper safety shielding or containment must be provided in case of leakage or failure. Over time, plastic creep or fatigue may slightly alter the internal dimensions, so scheduled replacement or recalibration intervals should be observed. In addition, avoid exposing the rotameter to strong UV light or sudden thermal shocks, which can degrade plastics over time.
Kingspray (Mid-Crown) provides significant advantages for users of plastic rotameter devices. Their vertical integration in mold design, injection molding, materials lab, and custom calibration allows tight control over plastic tube characteristics, float craftsmanship, and calibration accuracy. The F10 model is a good representative of their plastic rotameter line, featuring dual pointers, laser-engraved scale, fine floats, and smooth installation joints for ease of use and reliability. Because Kingspray handles customization, users can request scale calibration for specific chemicals so that field readings are direct and accurate. Their background in chemical-resistant plastic components and nearly two decades of flow meter development gives confidence that the plastic rotameter selected will match both operational demands and chemical compatibility. For optimal performance, users should adhere to correct vertical mounting, avoid turbulence or vibration, filter incoming fluid where needed, protect the plastic metering tube, and schedule routine inspection and recalibration. These precautions help ensure the plastic rotameter delivers accurate, stable, and long-term performance in demanding industrial environments.
