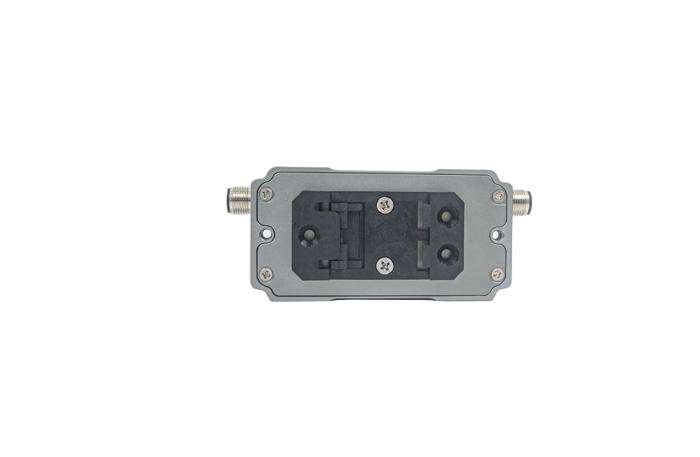

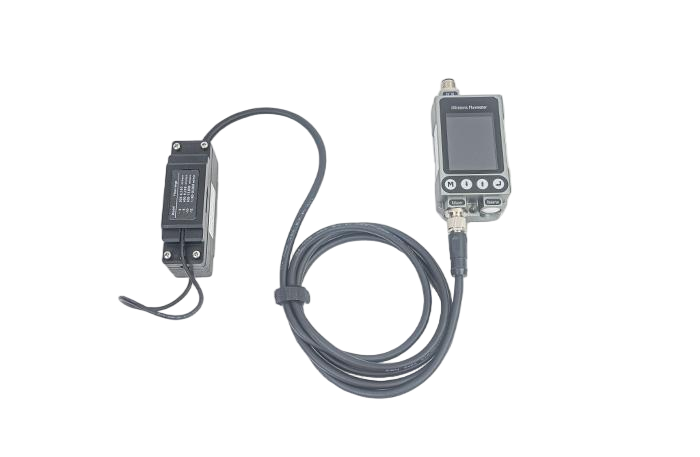

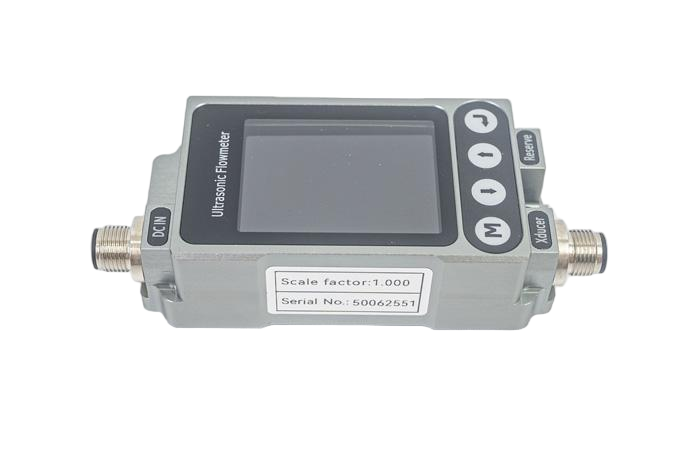

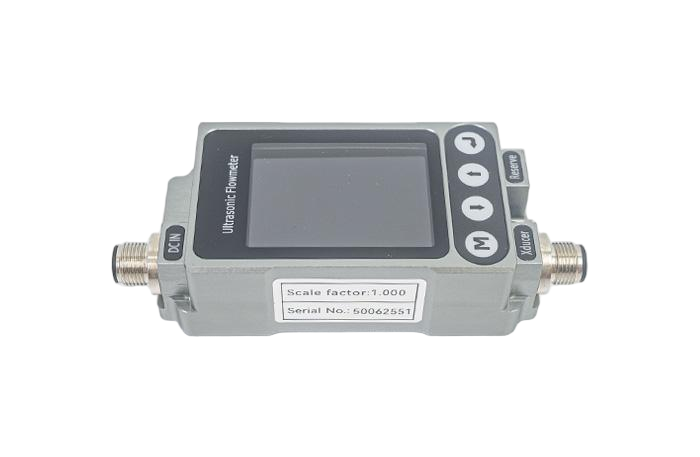

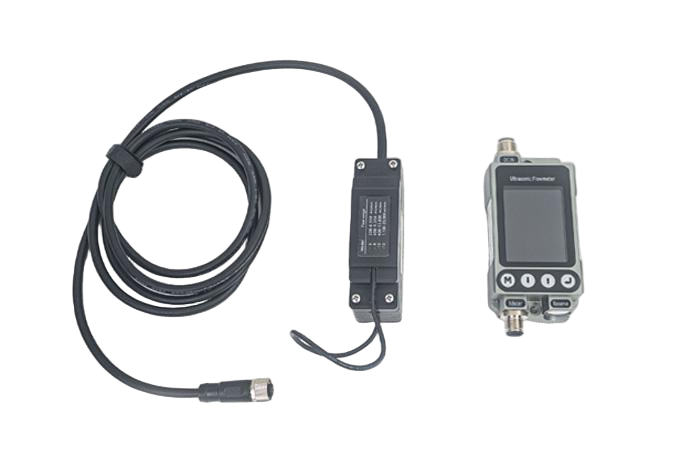

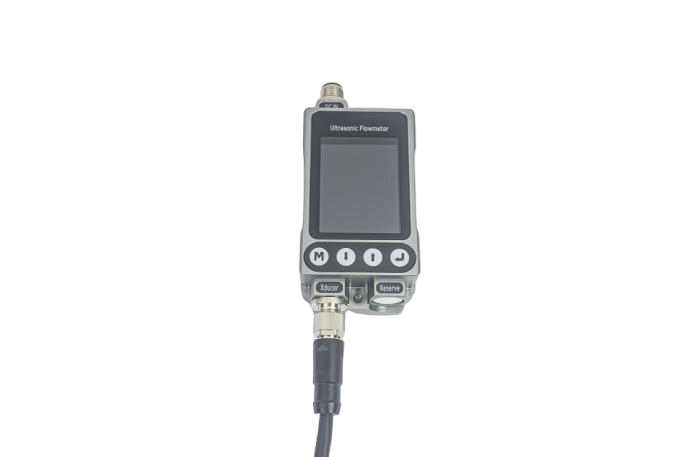

FU-Q Split Ultrasonic Flow Meter，For very fine tube diameters
Split ultrasonic flowmeter, patented technology quick installation can be used to complete the basic setup of a key, no contact with the liquid outside the pipe design, three steps can be installed in three minutes.
| Applicable pipe size: | φ6-φ12.7 |
| Fluid temperature: | -16℃~60℃ |
| Environmental humidity | Relative humidity:0%-95%,no condensation |
| Applicable fluid: | Water, oil, chemicals（impurities≤4%） |
| Measurement Accuracy: | +/ -2.0%(0.3m/s-5.0m/s) |
| Waterproof level: | IP65 |
| Power demand: | 24VDC|@3W |
| Displayed Flow Rate: | Instantaneous/Totalized Flow Rate |
| Input/Output: | Analog output (4-20mA, maximum load 600Ω) |
Sensors can quickly and reliably detect the flow rate of liquids in plastic pipes. Non-intrusive sensors have no contact with the medium and are particularly suitable for applications with strict hygiene standards, such as liquid flow monitoring in biopharmaceutical processes, medical equipment, and semiconductor equipment production.
This flow meter is entirely made of ABS material through CNC processing. It has good dimensional consistency, high strength and good toughness. The non-contact flow sensor combines precise measurement with high quality and a unique compact sensor concept. It is suitable for most materials and sizes of plastic pipes on the market, such as: PVC, silicone resin, PFA, PTFE, etc.
The flow meter is stuck outside the pipe. No additional modifications to the pipeline are required.The collimated sensor ensures the effective measurement distance and reliability, and has good measurement stability.
No professional knowledge is required. Installation and measurement can be completed by simply selecting from the menu.
There are no moving parts, no pressure loss, and it can be installed and used without having to stop production.
This flow meter is specifically designed for measuring small-diameter pipes such as hoses and tubes. It is mainly used in industries such as semiconductor, medical, chemical production processes, fine chemical production, cleaning industry, and beverage industry.
- The pressure remains at 0.3 MPa.
- The flow rate of the medium in the pipeline is stable.
- No bubbles (or cavitation) will be generated due to the flow.
If you need to purchase our products or make a technical enquiry, click submit below. We will arrange for our technical team to respond as soon as possible.
